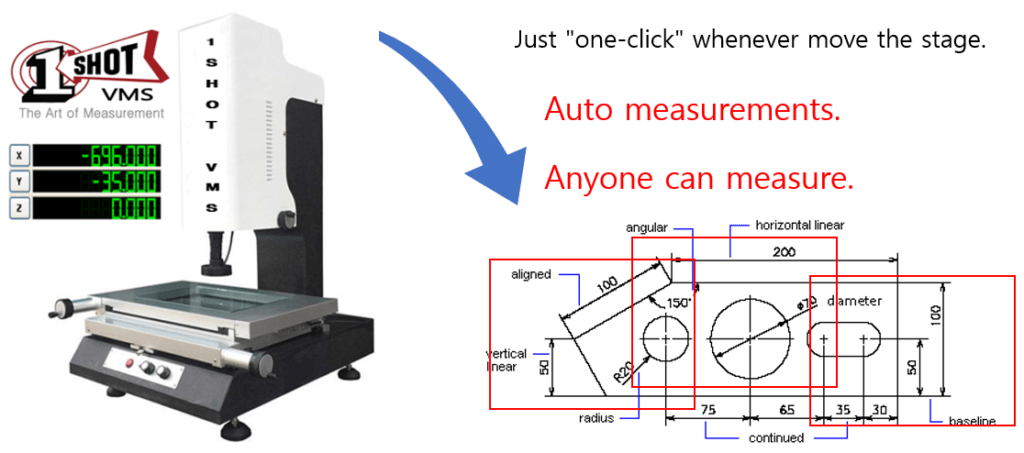

One-shot VMS™ One-shot Video Measuring System

World New Dimensioning Concepts
One-shot auto detection + Coordinate measuring

One-shot VMS™ One-shot Video Measuring System

World New Dimensioning Concepts
One-shot auto detection + Coordinate measuring

Special Advantages

World’s Only: One-shot Measurements Even Objects Larger Than Real-Time Images
One-shot measurement freedom from fine size to 400 mm object
Highest repeatability in the world: 1 um or less
Ultra-fast measurement: 100 points measured in 1 second even if the object is in a different position and orientation.
Can be calibrated by an international authorized calibration agency

Precision measurement of less than 1 um

Repeat precision measurements of less than 1 um are possible. The higher the magnification of the lens, the better the precision.

Sub-pixel Image Processing for High Precision Measurements

We applied an algorithm to break down the intensity of light into sub pixels.

Pattern matching algorithm & measurement in just 1 second

Even if you change the position and orientation of an object in the real-time image, more than 100 measurement points are automatically detected and measured, the fastest in the world, in just one second.

Equal measurement results without individual error

Sources of random error

Indivisual biological variation
Measurement error
Sampling error

Measure multiple objects at once

Simple operation: simply set measurements and tolerances by combining points, lines, and circles.

DB: automatically saves statistics, trend graphs, and analysis reports

Export measurement results to CAD DXF file and import drawings from CAD

Supported languages: Korean, English, Chinese, Japanese. Other languages can be added

Reliability system

The reference scale used for inspection and calibration complies with the reference scale of the international authorized calibration agency to establish reliability as a national standard.

International standard	Korean Agency for Technology and Standards KOLAS (Korea Laboratory Accreditation Scheme)
National correctional agency	Reference scale
Secondary standard	Precision coordinate measuring instrument
Common standard	Reference scale
Measuring instrument to be calibrated	One-shot Video Measuring System

Specifications

Model	VMS-1510	VMS-2010	VMS-2515	VMS-3020	VMS-4030
Metal Table Size(mm)	354X228	404X228	450X280	506X356	606X466
Glass Table Size(mm)	210X160	260X160	306X196	350X280	450X350
X,Y-axis Travel(mm)	150X100	200X100	250X150	300X200	400X300
Z-axis Travel(mm)	200	200	200	200	300
Resolution(mm)	0.0005	0.0005	0.0005	0.0005	0.0005
X,Y-axis Accuracy(um)	≤3+L/200	≤3+L/200	≤3+L/200	≤3+L/200	≤3+L/200
Dimensios(mm)	600x530x950	600x550x920	690x550x1020	780x600x1060	945x646x1096
Video System	Color CMOS Camera (Pixels: 20M or 3M)
Lens selection	1. Zoom lens: 0.7~4.5 mag, Field Of View: 7~ 1.1 mm 2. Bi-Telecentric lens: FOV: 60 ~50 mm, DOF: 35 mm 3. Bi-Telecentric lens: FOV: 직경 70 mm, DOF: 124 mm
LED Lighting	Lower: LED Transmission, Upper: Ring, Coaxial
Power	180 V ~ 260 V(AC),50 HZ
Software	Automatic recognition: 360 degree change and position Sub pixel pattern matching
	Adjust camera sensitivity
	How to set up measurements: Combine points, lines, circle Tolerance setting: absolute or % value Simultaneous measurement points: up to 200 Simultaneous measurement parts: up to 200 Can be measured by ROI
	Repeat Precision (Same Position): Up to less than ±1 μm
	Measurement precision (position change): Up to less than ±1 μm
	Measurement speed: Approximately 1 second
	Automatically save measurement results DB: historical, statistical analysis
	Generate Excel Report
	Help: Video tips on how to use
Image processing controller	OS (Windows 10, 64 bit), Intel i5 CPU,
	RAM 16 GB, USB 3.0, LAN
Monitor	24″ or higher (FHD: 1920 X 1080 and above)
Working environment	working temperature: 10 ~ 35°C
	working humidity: 20% ~ 80% RH(Non Condensation)
Option	Send measurement results to your server
	PLC communication: measurement start and measurement results (OK, NG)

Image Sensor selectable

Model	Color, CMOS	Pixel(μm)	Sensitivity	max FPS Resolution	Shutter
D3MGS	3.1M / Sony IMX265	3.45 x 3.45	1146 mv	53@ 2048 x 1536	Global
	1/1.8 inch
MESEN 20M	20M / Sony IMX183	2.4 x 2.4	462 mv	15@ 5440 x 3648	Rolling

Embedded Vision Box

OS (Windows 10, 64 bit)
CPU: Intel CORE™ i5 or i7
RAM 16 GB, USB 3.0
Embedded : MESEN™ one-shot software , SQL database, XTMeasure

Where to Use

Press workpiece, injection, extrusion, sintering, stamping, molded parts
Automotive and mechanical parts: pin, chip, shaft, connector, O-ring, gasket, screw, spring
Electronic. Semiconductors, Smartphone parts: PCB, LCD parts, lead frame, camera module
Medical Parts, Implant Parts

The contents of this material are subject to change without notice. Each company name or brand name in this material is a registered trademark of the company.
